SpringBatch中的作业流

2. 作业流

2.1 Job 的创建和使用

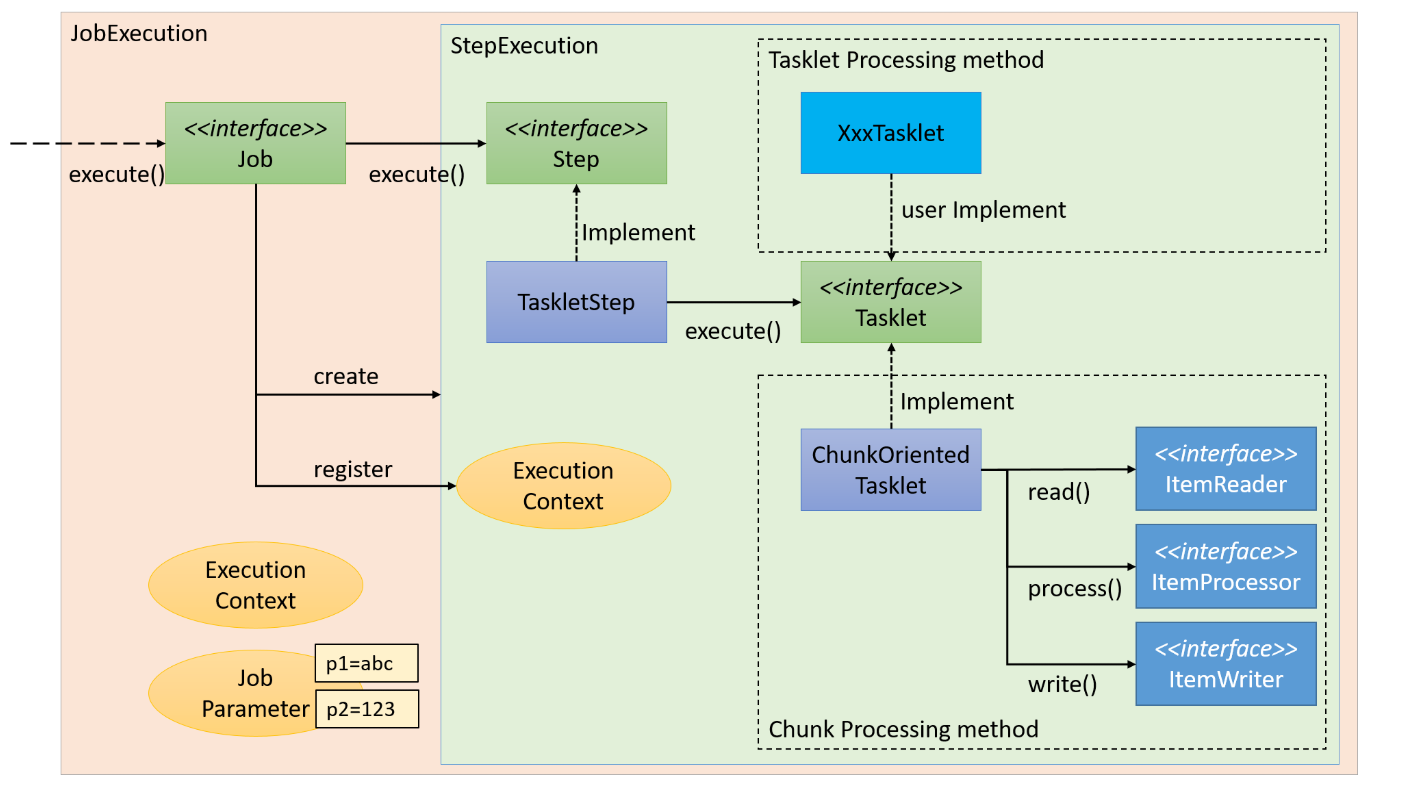

Job：批处理中的核心概念，是 Batch操作的基础单元。每个Job有1个或多个Step。

import org.springframework.batch.core.Job;
import org.springframework.batch.core.Step;
import org.springframework.batch.core.StepContribution;
import org.springframework.batch.core.configuration.annotation.EnableBatchProcessing;
import org.springframework.batch.core.configuration.annotation.JobBuilderFactory;
import org.springframework.batch.core.configuration.annotation.StepBuilderFactory;
import org.springframework.batch.core.scope.context.ChunkContext;
import org.springframework.batch.core.step.tasklet.Tasklet;
import org.springframework.batch.repeat.RepeatStatus;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

@Configuration
@EnableBatchProcessing
public class JobDemo {

    @Autowired
    private JobBuilderFactory jobBuilderFactory;

    @Autowired
    private StepBuilderFactory stepBuilderFactory;

    @Bean
    public Job jobDemoJob() {
        return jobBuilderFactory.get("jobDemoJob")
                .start(step1())
                .on("COMPLETED").to(step2())
                .from(step2()).on("COMPLETED").to(step3()) // fail(), stopAndRestart(step1())
                .from(step3()).end()
                .build();
    }

    @Bean
    public Step step1() {
        return stepBuilderFactory.get("step1")
                .tasklet(new Tasklet() {
                    @Override
                    public RepeatStatus execute(StepContribution stepContribution, ChunkContext chunkContext) throws Exception {
                        System.out.println("My second job!");
                        return RepeatStatus.FINISHED;
                    }
                }).build();
    }

    @Bean
    public Step step2() {
        return stepBuilderFactory.get("step2")
                .tasklet(new Tasklet() {
                    @Override
                    public RepeatStatus execute(StepContribution stepContribution, ChunkContext chunkContext) throws Exception {
                        System.out.println("This is step#2");
                        return RepeatStatus.FINISHED;
                    }
                }).build();
    }

    @Bean
    public Step step3() {
        return stepBuilderFactory.get("step3")
                .tasklet(new Tasklet() {
                    @Override
                    public RepeatStatus execute(StepContribution stepContribution, ChunkContext chunkContext) throws Exception {
                        System.out.println("This is step#3, the last one");
                        return RepeatStatus.FINISHED;
                    }
                }).build();
    }
}

2.2 Flow 的创建和使用

Flow是多个Step的集合
可以被多个Job复用
使用FlowBuilder来创建

import org.springframework.batch.core.Job;
import org.springframework.batch.core.Step;
import org.springframework.batch.core.StepContribution;
import org.springframework.batch.core.configuration.annotation.EnableBatchProcessing;
import org.springframework.batch.core.configuration.annotation.JobBuilderFactory;
import org.springframework.batch.core.configuration.annotation.StepBuilderFactory;
import org.springframework.batch.core.job.builder.FlowBuilder;
import org.springframework.batch.core.job.flow.Flow;
import org.springframework.batch.core.scope.context.ChunkContext;
import org.springframework.batch.core.step.tasklet.Tasklet;
import org.springframework.batch.repeat.RepeatStatus;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

@Configuration
@EnableBatchProcessing
public class JobDemo {

    @Autowired
    private JobBuilderFactory jobBuilderFactory;

    @Autowired
    private StepBuilderFactory stepBuilderFactory;

    @Bean
    public Job jobDemoJob() {
        return jobBuilderFactory.get("jobDemoJob")
                .start(step1())
                .on("COMPLETED").to(step2())
                .from(step2()).on("COMPLETED").to(step3()) // fail(), stopAndRestart(step1())
                .from(step3()).end()
                .build();
    }

    @Bean
    public Step step1() {
        return stepBuilderFactory.get("step1")
                .tasklet(new Tasklet() {
                    @Override
                    public RepeatStatus execute(StepContribution stepContribution, ChunkContext chunkContext) throws Exception {
                        System.out.println("My second job!");
                        return RepeatStatus.FINISHED;
                    }
                }).build();
    }

    @Bean
    public Step step2() {
        return stepBuilderFactory.get("step2")
                .tasklet(new Tasklet() {
                    @Override
                    public RepeatStatus execute(StepContribution stepContribution, ChunkContext chunkContext) throws Exception {
                        System.out.println("This is step#2");
                        return RepeatStatus.FINISHED;
                    }
                }).build();
    }

    @Bean
    public Step step3() {
        return stepBuilderFactory.get("step3")
                .tasklet(new Tasklet() {
                    @Override
                    public RepeatStatus execute(StepContribution stepContribution, ChunkContext chunkContext) throws Exception {
                        System.out.println("This is step#3, the last one");
                        return RepeatStatus.FINISHED;
                    }
                }).build();
    }
}

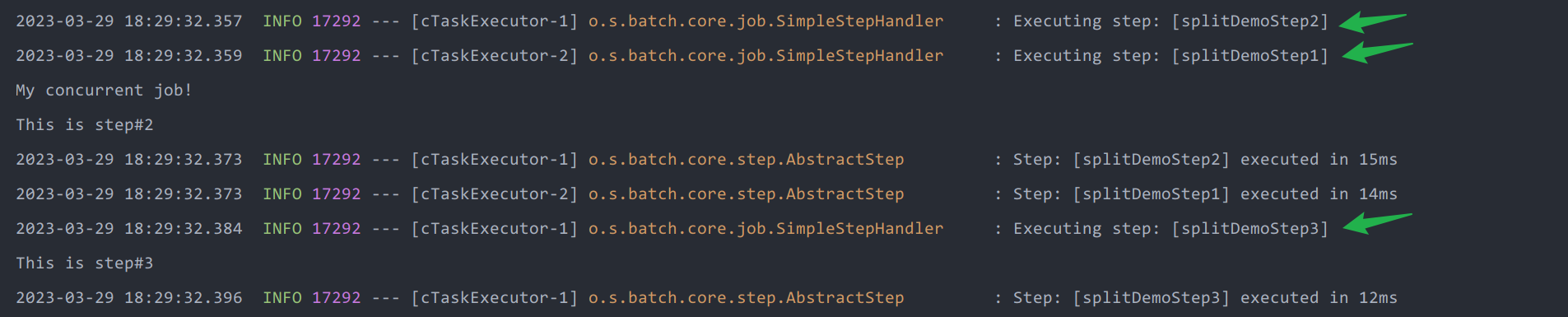

2.3 split 实现并发执行

实现任务中的多个step或多个flow并发执行，案例步骤如下：

创建若干个step
创建2个flow
创建1个任务包含以上2个flow，并让这2个flow并发执行

import org.springframework.batch.core.Job;
import org.springframework.batch.core.Step;
import org.springframework.batch.core.StepContribution;
import org.springframework.batch.core.configuration.annotation.EnableBatchProcessing;
import org.springframework.batch.core.configuration.annotation.JobBuilderFactory;
import org.springframework.batch.core.configuration.annotation.StepBuilderFactory;
import org.springframework.batch.core.job.builder.FlowBuilder;
import org.springframework.batch.core.job.flow.Flow;
import org.springframework.batch.core.scope.context.ChunkContext;
import org.springframework.batch.core.step.tasklet.Tasklet;
import org.springframework.batch.repeat.RepeatStatus;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.core.task.SimpleAsyncTaskExecutor;

@Configuration
@EnableBatchProcessing
public class FlowDemo {

    @Autowired
    private JobBuilderFactory jobBuilderFactory;

    @Autowired
    private StepBuilderFactory stepBuilderFactory;

    @Bean
    public Step flowDemoStep1() {
        return stepBuilderFactory.get("flowDemoStep1")
                .tasklet(new Tasklet() {
                    @Override
                    public RepeatStatus execute(StepContribution stepContribution, ChunkContext chunkContext) throws Exception {
                        System.out.println("My third job!");
                        return RepeatStatus.FINISHED;
                    }
                }).build();
    }

    @Bean
    public Step flowDemoStep2() {
        return stepBuilderFactory.get("flowDemoStep2")
                .tasklet(new Tasklet() {
                    @Override
                    public RepeatStatus execute(StepContribution stepContribution, ChunkContext chunkContext) throws Exception {
                        System.out.println("This is step#2");
                        return RepeatStatus.FINISHED;
                    }
                }).build();
    }

    @Bean
    public Step flowDemoStep3() {
        return stepBuilderFactory.get("flowDemoStep3")
                .tasklet(new Tasklet() {
                    @Override
                    public RepeatStatus execute(StepContribution stepContribution, ChunkContext chunkContext) throws Exception {
                        System.out.println("This is step#3, the last step");
                        return RepeatStatus.FINISHED;
                    }
                }).build();
    }

    // 创建 Flow对象
    @Bean
    public Flow flowDemoFlow() {
        return new FlowBuilder<Flow>("flowDemoFlow")
                .start(flowDemoStep1())
                .next(flowDemoStep2())
                .build();
    }

    // 创建 Job对象
    @Bean
    public Job flowDemoJob() {
        return jobBuilderFactory.get("flowDemoJob")
                .start(flowDemoFlow())
                .next(flowDemoStep3())
                .end()
                .build();
    }

}

2.4 决策器的使用

接口：JobExecutionDecider

import org.springframework.batch.core.JobExecution;
import org.springframework.batch.core.StepExecution;
import org.springframework.batch.core.job.flow.FlowExecutionStatus;
import org.springframework.batch.core.job.flow.JobExecutionDecider;

// 自定义的 决策器
public class MyDecider implements JobExecutionDecider {

    private int count; // 计数器, 初始为 0

    @Override
    public FlowExecutionStatus decide(JobExecution jobExecution, StepExecution stepExecution) {
        count++;
        if (count % 2 == 0) {
            return new FlowExecutionStatus("EVEN偶数");
        } else {
            return new FlowExecutionStatus("ODD奇数");
        }
    }
}
import org.springframework.batch.core.Job;
import org.springframework.batch.core.Step;
import org.springframework.batch.core.StepContribution;
import org.springframework.batch.core.configuration.annotation.EnableBatchProcessing;
import org.springframework.batch.core.configuration.annotation.JobBuilderFactory;
import org.springframework.batch.core.configuration.annotation.StepBuilderFactory;
import org.springframework.batch.core.job.flow.JobExecutionDecider;
import org.springframework.batch.core.scope.context.ChunkContext;
import org.springframework.batch.core.step.tasklet.Tasklet;
import org.springframework.batch.repeat.RepeatStatus;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

@Configuration
@EnableBatchProcessing
public class DeciderDemo {

    @Autowired
    private JobBuilderFactory jobBuilderFactory;

    @Autowired
    private StepBuilderFactory stepBuilderFactory;

    @Bean
    public Step deciderDemoStep1() {
        return stepBuilderFactory.get("deciderDemoStep1")
                .tasklet(new Tasklet() {
                    @Override
                    public RepeatStatus execute(StepContribution stepContribution, ChunkContext chunkContext) throws Exception {
                        System.out.println("This is step#1!");
                        return RepeatStatus.FINISHED;
                    }
                }).build();
    }

    @Bean
    public Step deciderDemoStep2() {
        return stepBuilderFactory.get("deciderDemoStep2")
                .tasklet(new Tasklet() {
                    @Override
                    public RepeatStatus execute(StepContribution stepContribution, ChunkContext chunkContext) throws Exception {
                        System.out.println("This is step#2");
                        return RepeatStatus.FINISHED;
                    }
                }).build();
    }

    @Bean
    public Step deciderDemoStep3() {
        return stepBuilderFactory.get("deciderDemoStep3")
                .tasklet(new Tasklet() {
                    @Override
                    public RepeatStatus execute(StepContribution stepContribution, ChunkContext chunkContext) throws Exception {
                        System.out.println("This is step#3");
                        return RepeatStatus.FINISHED;
                    }
                }).build();
    }

    // 把自定义的 MyDecider 注册到容器中
    @Bean
    public JobExecutionDecider myDecider(){
        return new MyDecider();
    }

    // 创建任务: 会按照 step#1 -> myDecider -> step#3 -> myDecider -> step#2 的顺序执行
    @Bean
    public Job deciderDemoJob(){
        return jobBuilderFactory.get("deciderDemoJob")
                .start(deciderDemoStep1())
                .next(myDecider())
                .from(myDecider()).on("EVEN偶数").to(deciderDemoStep2())
                .from(myDecider()).on("ODD奇数").to(deciderDemoStep3())
                .from(deciderDemoStep3()).on("*").to(myDecider()) // 无论返回什么都回到决策器 ↑next(myDecider())
                .end()
                .build();
    }

}

2.5 Job 的嵌套

一个Job可以嵌套在另一个Job中。被嵌赛的Job称为子Job，外部Job称为父Jb。子job不能单独执行，需要由父Job来启动。

Tips： @EnableBatchProcessing可以放在主启动类上，节省了单个配置类上方使用该注解的重复操作。

import org.springframework.batch.core.configuration.annotation.EnableBatchProcessing;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
@EnableBatchProcessing
public class SpringbatchApplication {
	public static void main(String[] args) {
		SpringApplication.run(SpringbatchApplication.class, args);
	}
}

案例：创建一对父子Job

import org.springframework.batch.core.Job;
import org.springframework.batch.core.Step;
import org.springframework.batch.core.StepContribution;
import org.springframework.batch.core.configuration.annotation.JobBuilderFactory;
import org.springframework.batch.core.configuration.annotation.StepBuilderFactory;
import org.springframework.batch.core.scope.context.ChunkContext;
import org.springframework.batch.core.step.tasklet.Tasklet;
import org.springframework.batch.repeat.RepeatStatus;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

@Configuration
public class ChildJobOne {

    @Autowired
    private JobBuilderFactory jobBuilderFactory;

    @Autowired
    private StepBuilderFactory stepBuilderFactory;

    @Bean
    public Step childJob1Step1() {
        return stepBuilderFactory.get("childJob1Step1")
                .tasklet(new Tasklet() {
                    @Override
                    public RepeatStatus execute(StepContribution stepContribution, ChunkContext chunkContext) throws Exception {
                        System.out.println("This is step#1 in Job#1!");
                        return RepeatStatus.FINISHED;
                    }
                }).build();
    }

    @Bean
    public Job childJob1() {
        return jobBuilderFactory.get("childJob1")
                .start(childJob1Step1())
                .build();
    }
}
import org.springframework.batch.core.Job;
import org.springframework.batch.core.Step;
import org.springframework.batch.core.StepContribution;
import org.springframework.batch.core.configuration.annotation.JobBuilderFactory;
import org.springframework.batch.core.configuration.annotation.StepBuilderFactory;
import org.springframework.batch.core.scope.context.ChunkContext;
import org.springframework.batch.core.step.tasklet.Tasklet;
import org.springframework.batch.repeat.RepeatStatus;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

@Configuration
public class ChildJobTwo {

    @Autowired
    private JobBuilderFactory jobBuilderFactory;

    @Autowired
    private StepBuilderFactory stepBuilderFactory;

    @Bean
    public Step childJob2Step1() {
        return stepBuilderFactory.get("childJob2Step1")
                .tasklet(new Tasklet() {
                    @Override
                    public RepeatStatus execute(StepContribution stepContribution, ChunkContext chunkContext) throws Exception {
                        System.out.println("This is step#1 in Job#2!");
                        return RepeatStatus.FINISHED;
                    }
                }).build();
    }

    @Bean
    public Step childJob2Step2() {
        return stepBuilderFactory.get("childJob2Step2")
                .tasklet(new Tasklet() {
                    @Override
                    public RepeatStatus execute(StepContribution stepContribution, ChunkContext chunkContext) throws Exception {
                        System.out.println("This is step#2 in Job#2!");
                        return RepeatStatus.FINISHED;
                    }
                }).build();
    }

    @Bean
    public Job childJob2() {
        return jobBuilderFactory.get("childJob2")
                .start(childJob2Step1())
                .next(childJob2Step2())
                .build();
    }

}
import org.springframework.batch.core.Job;
import org.springframework.batch.core.Step;
import org.springframework.batch.core.configuration.annotation.JobBuilderFactory;
import org.springframework.batch.core.configuration.annotation.StepBuilderFactory;
import org.springframework.batch.core.launch.JobLauncher;
import org.springframework.batch.core.repository.JobRepository;
import org.springframework.batch.core.step.builder.JobStepBuilder;
import org.springframework.batch.core.step.builder.StepBuilder;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.transaction.PlatformTransactionManager;

@Configuration
public class NestedDemo {

    @Autowired
    private JobBuilderFactory jobBuilderFactory;
    @Autowired
    private StepBuilderFactory stepBuilderFactory;

    @Autowired
    private Job childJob1;
    @Autowired
    private Job childJob2;

    @Autowired
    private JobLauncher launcher;

    @Bean
    public Job parentJob(JobRepository jobRepository, PlatformTransactionManager transactionManager){
        return jobBuilderFactory.get("parentJob")
                .start(jobStep1(jobRepository, transactionManager))
                .next(jobStep2(jobRepository, transactionManager))
                .build();
    }

    // 返回的是 Job类型的 Step (特殊的Step)
    private Step jobStep1(JobRepository jobRepository, PlatformTransactionManager transactionManager) {
        return new JobStepBuilder(new StepBuilder("jobStep1"))
                .job(childJob1)
                .launcher(launcher) // 使用 启动父Job的 启动对象
                .repository(jobRepository)
                .transactionManager(transactionManager)
                .build();
    }

    private Step jobStep2(JobRepository jobRepository, PlatformTransactionManager transactionManager) {
        return new JobStepBuilder(new StepBuilder("jobStep2"))
                .job(childJob2)
                .launcher(launcher) // 使用 启动父Job的 启动对象
                .repository(jobRepository)
                .transactionManager(transactionManager)
                .build();
    }

}

console

spring.batch.job.names=parentJob
2023-03-29 21:32:46.530  INFO 15588 --- [           main] o.s.batch.core.job.SimpleStepHandler     : Executing step: [childJob1Step1]
This is step#1 in Job#1!
2023-03-29 21:32:46.547  INFO 15588 --- [           main] o.s.batch.core.step.AbstractStep         : Step: [childJob1Step1] executed in 16ms
2023-03-29 21:32:46.556  INFO 15588 --- [           main] o.s.b.c.l.support.SimpleJobLauncher      : Job: [SimpleJob: [name=childJob1]] completed with the following parameters: [{}] and the following status: [COMPLETED] in 32ms
2023-03-29 21:32:46.583  INFO 15588 --- [           main] o.s.batch.core.step.AbstractStep         : Step: [jobStep1] executed in 77ms
2023-03-29 21:32:46.597  INFO 15588 --- [           main] o.s.batch.core.job.SimpleStepHandler     : Executing step: [jobStep2]
2023-03-29 21:32:46.611  INFO 15588 --- [           main] o.s.b.c.l.support.SimpleJobLauncher      : Job: [SimpleJob: [name=childJob2]] launched with the following parameters: [{}]
2023-03-29 21:32:46.622  INFO 15588 --- [           main] o.s.batch.core.job.SimpleStepHandler     : Executing step: [childJob2Step1]
This is step#1 in Job#2!
2023-03-29 21:32:46.632  INFO 15588 --- [           main] o.s.batch.core.step.AbstractStep         : Step: [childJob2Step1] executed in 9ms
2023-03-29 21:32:46.644  INFO 15588 --- [           main] o.s.batch.core.job.SimpleStepHandler     : Executing step: [childJob2Step2]
This is step#2 in Job#2!
2023-03-29 21:32:46.656  INFO 15588 --- [           main] o.s.batch.core.step.AbstractStep         : Step: [childJob2Step2] executed in 11ms

2.6 监听器的使用

监听器用来监听批处理作业的执行情况创建监听可以通过实现接口或使用注解

JobExecutionListener(before, after)
StepExecutionListener(before, after)
ChunkListener(before, after, error)
ItemReadListener / ItemProcessListener / ItemWriteListener(before, after, error)

package com.sb.springbatch.listener;

import org.springframework.batch.core.JobExecution;
import org.springframework.batch.core.JobExecutionListener;

public class MyJobListener implements JobExecutionListener {
    @Override
    public void beforeJob(JobExecution jobExecution) {
        System.out.println(jobExecution.getJobInstance().getJobName() + ">before<");
    }

    @Override
    public void afterJob(JobExecution jobExecution) {
        System.out.println(jobExecution.getJobInstance().getJobName() + ">after<");
    }
}
package com.sb.springbatch.listener;

import org.springframework.batch.core.annotation.AfterChunk;
import org.springframework.batch.core.annotation.BeforeChunk;
import org.springframework.batch.core.scope.context.ChunkContext;

public class MyChunkListener {
    @BeforeChunk
    public void beforeChunk(ChunkContext chunkContext) {
        System.out.println(chunkContext.getStepContext().getStepName() + "...before...");
    }

    @AfterChunk
    public void afterChunk(ChunkContext chunkContext) {
        System.out.println(chunkContext.getStepContext().getStepName() + "...after...");
    }
}
import org.springframework.batch.core.Job;
import org.springframework.batch.core.Step;
import org.springframework.batch.core.configuration.annotation.JobBuilderFactory;
import org.springframework.batch.core.configuration.annotation.StepBuilderFactory;
import org.springframework.batch.item.ItemReader;
import org.springframework.batch.item.ItemWriter;
import org.springframework.batch.item.support.ListItemReader;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

import com.sb.springbatch.listener.MyJobListener;
import com.sb.springbatch.listener.MyChunkListener;

import java.util.Arrays;
import java.util.List;

@Configuration
public class ListenerDemo {

    @Autowired
    private JobBuilderFactory jobBuilderFactory;
    @Autowired
    private StepBuilderFactory stepBuilderFactory;

    @Bean
    public Job listenerJob() {
        return jobBuilderFactory.get("listenerJob")
                .start(step1())
                .listener(new MyJobListener())
                .build();
    }

    // step1 Chunk 使用方式
    @Bean
    public Step step1() {
        return stepBuilderFactory.get("step1")
                // 数据的读取, <String,String> 规定I/O的数据类型
                .<String, String>chunk(2) // 每读完2个数据进行1次输出处理
                // 容错
                .faultTolerant()
                .listener(new MyChunkListener())
                // 数据的读取
                .reader(read())
                // 数据的写入
                .writer(write())
                .build();
    }

    @Bean
    public ItemWriter<String> write() {
        return new ItemWriter<String>() {
            @Override
            public void write(List<? extends String> list) throws Exception {
                list.forEach(System.out::println);
            }
        };
    }

    @Bean
    public ItemReader<String> read() {
        return new ListItemReader<>(Arrays.asList("item#1", "item#2", "item#3"));
    }
}

console

2023-03-29 22:04:02.304  INFO 10752 --- [           main] o.s.b.c.l.support.SimpleJobLauncher      : Job: [SimpleJob: [name=listenerJob]] launched with the following parameters: [{}]
listenerJob>before<
2023-03-29 22:04:02.316  INFO 10752 --- [           main] o.s.batch.core.job.SimpleStepHandler     : Executing step: [step1]
step1...before...
item#1
item#2
step1...after...
step1...before...
item#3
step1...after...
2023-03-29 22:04:02.339  INFO 10752 --- [           main] o.s.batch.core.step.AbstractStep         : Step: [step1] executed in 23ms
listenerJob>after<
2023-03-29 22:04:02.346  INFO 10752 --- [           main] o.s.b.c.l.support.SimpleJobLauncher      : Job: [SimpleJob: [name=listenerJob]] completed with the following parameters: [{}] and the following status: [COMPLETED] in 39ms

2.7 Job 参数

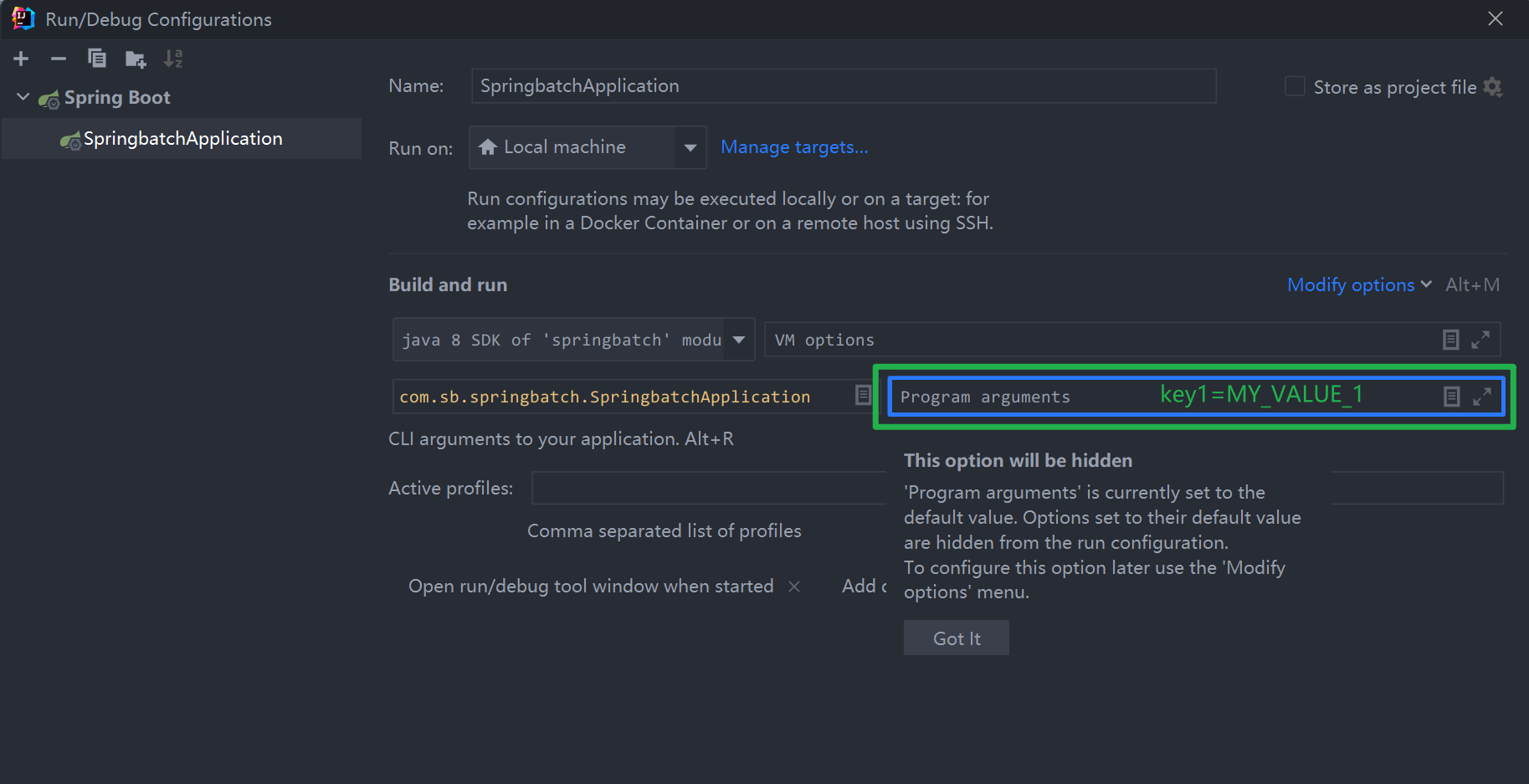

在Job运行时可以以key=value形式传递参数
使用监听可以拿到主启动类运行时候的参数

import org.springframework.batch.core.*;
import org.springframework.batch.core.configuration.annotation.JobBuilderFactory;
import org.springframework.batch.core.configuration.annotation.StepBuilderFactory;
import org.springframework.batch.core.scope.context.ChunkContext;
import org.springframework.batch.core.step.tasklet.Tasklet;
import org.springframework.batch.repeat.RepeatStatus;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

import java.util.Map;

@Configuration
public class ParametersDemo implements StepExecutionListener {

    @Autowired
    private JobBuilderFactory jobBuilderFactory;
    @Autowired
    private StepBuilderFactory stepBuilderFactory;

    private Map<String, JobParameter> params;

    @Bean
    public Job parameterJob() {
        return jobBuilderFactory.get("parameterJob")
                .start(paramStep())
                .build();
    }

    // Job执行的是 Step, 故 Job使用的参数本质就是 Step使用的参数
    // 那么如何 向Step 传递参数呢?
    // 可以使用 监听, 如 Step级别的监听来实现
    @Bean
    public Step paramStep() {
        return stepBuilderFactory.get("paramStep")
                .listener(this)
                .tasklet(new Tasklet() {
                    @Override
                    public RepeatStatus execute(StepContribution stepContribution, ChunkContext chunkContext) throws Exception {
                        // 打印 接收到的参数
                        System.out.println(params.get("key1"));
                        return RepeatStatus.FINISHED;
                    }
                }).build();
    }

    @Override
    public void beforeStep(StepExecution stepExecution) {
        params = stepExecution.getJobParameters().getParameters();
    }

    @Override
    public ExitStatus afterStep(StepExecution stepExecution) {
        return null;
    }
}

2023-03-30 15:15:53.632  INFO 12204 --- [           main] o.s.b.c.l.support.SimpleJobLauncher      : Job: [SimpleJob: [name=parameterJob]] launched with the following parameters: [{key1=MY_VALUE_1}]
2023-03-30 15:15:53.640  INFO 12204 --- [           main] o.s.batch.core.job.SimpleStepHandler     : Executing step: [paramStep]
MY_VALUE_1
2023-03-30 15:15:53.649  INFO 12204 --- [           main] o.s.batch.core.step.AbstractStep         : Step: [paramStep] executed in 9ms

2. 作业流#

2.1 Job 的创建和使用#

2.2 Flow 的创建和使用#

2.3 split 实现并发执行#

2.4 决策器 的使用#

2.5 Job 的嵌套#

2.6 监听器 的使用#

2.7 Job 参数#
